SPF Characteristics 102: Fiber Failures

This course will cover a number fiber failures that can occur in lumber important to the grading process.

Syllabus

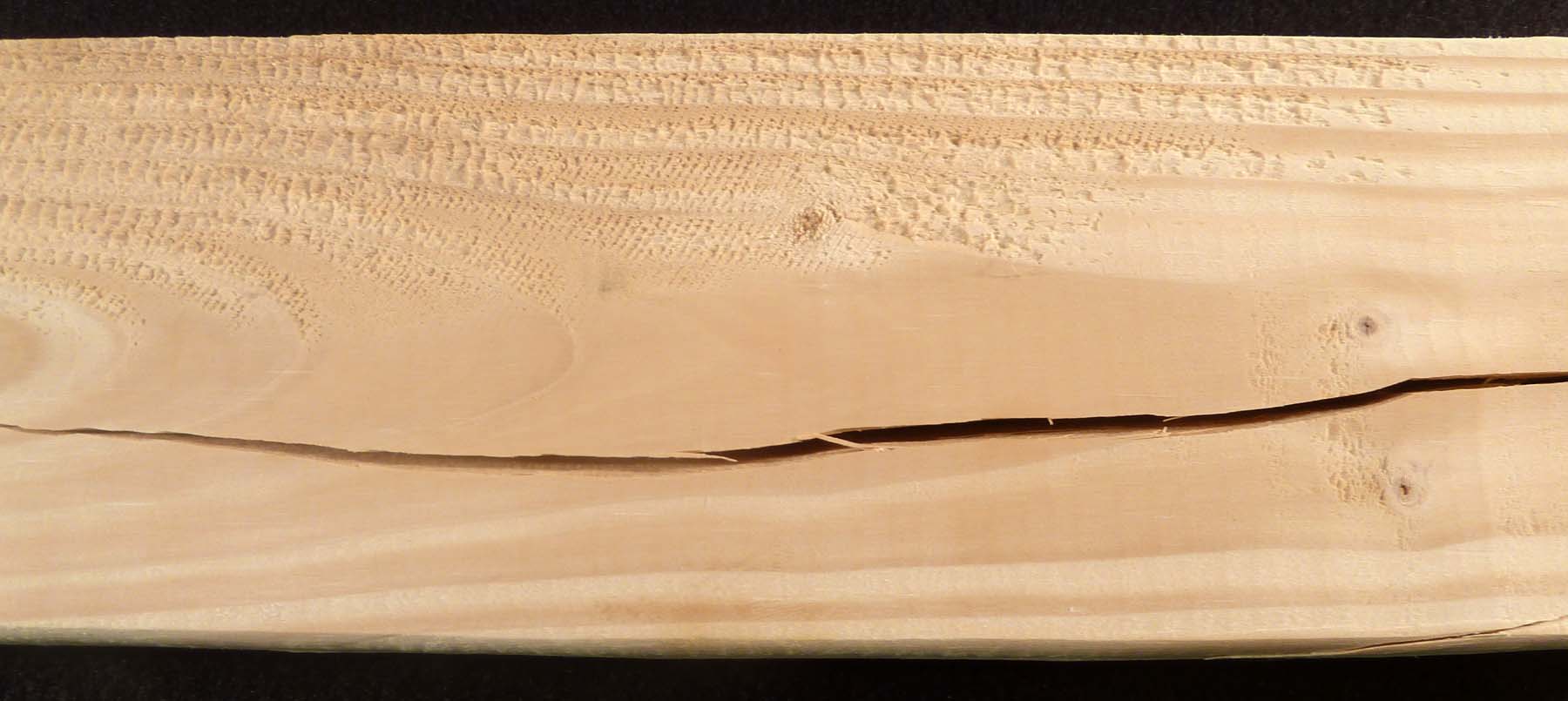

SPF 102: Checks

Check is a separation of the wood normally occurring across or through the rings of annual growth and usually a result of seasoning.  [Standard Grading Rules for Northeastern Lumber para. 704.0]

SPF 102: Surface Checks

Surface Check – a check that occurs on the face of a piece of lumber.  [Standard Grading Rules for Northeastern Lumber para. 704.0 (a)]

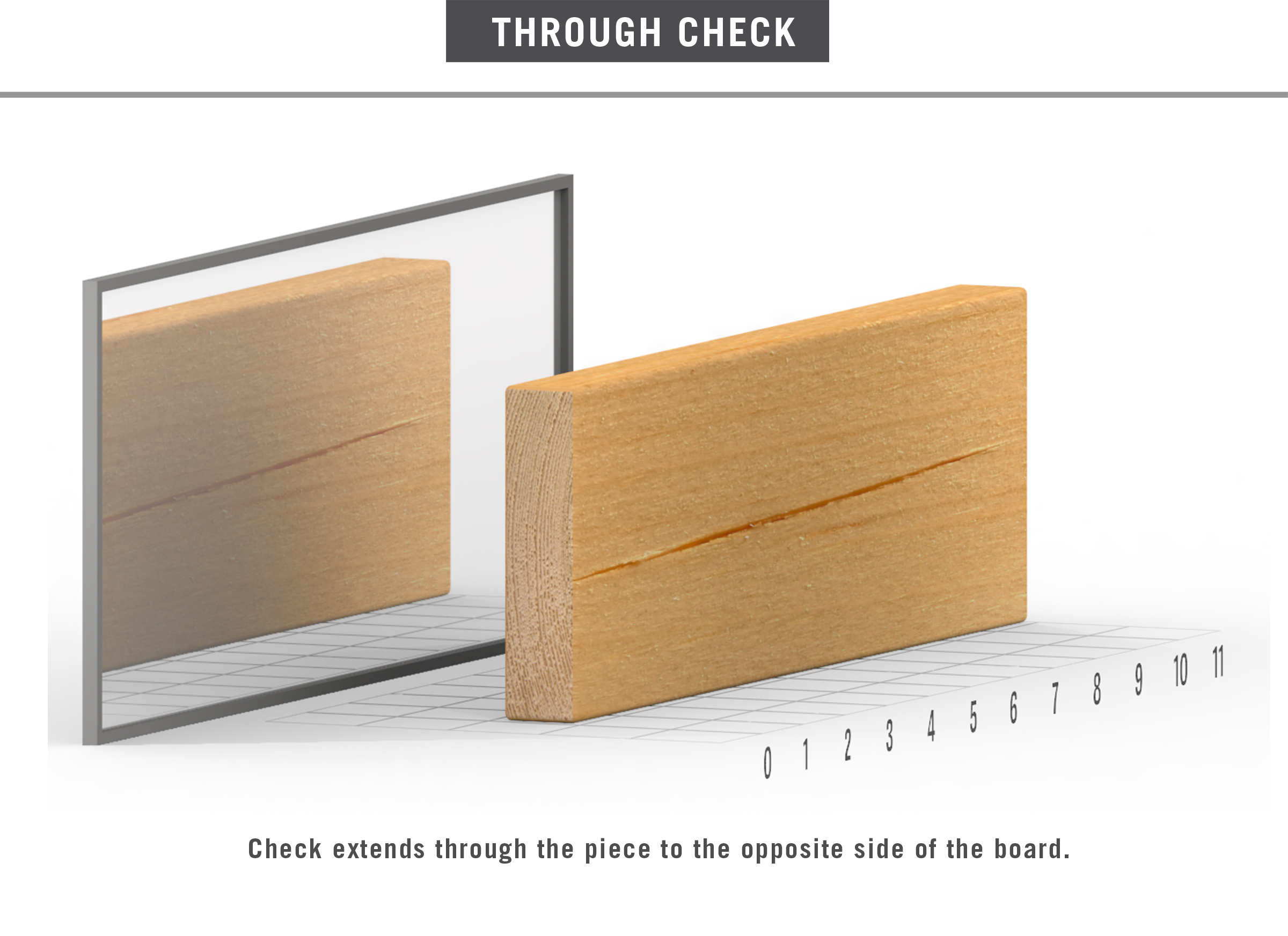

SPF 102: Through Check

Through Check – a check that extends from one surface of a piece of lumber to the opposite or adjoining surface.  [Standard Grading Rules for Northeastern Lumber para. 704.0 (b)]

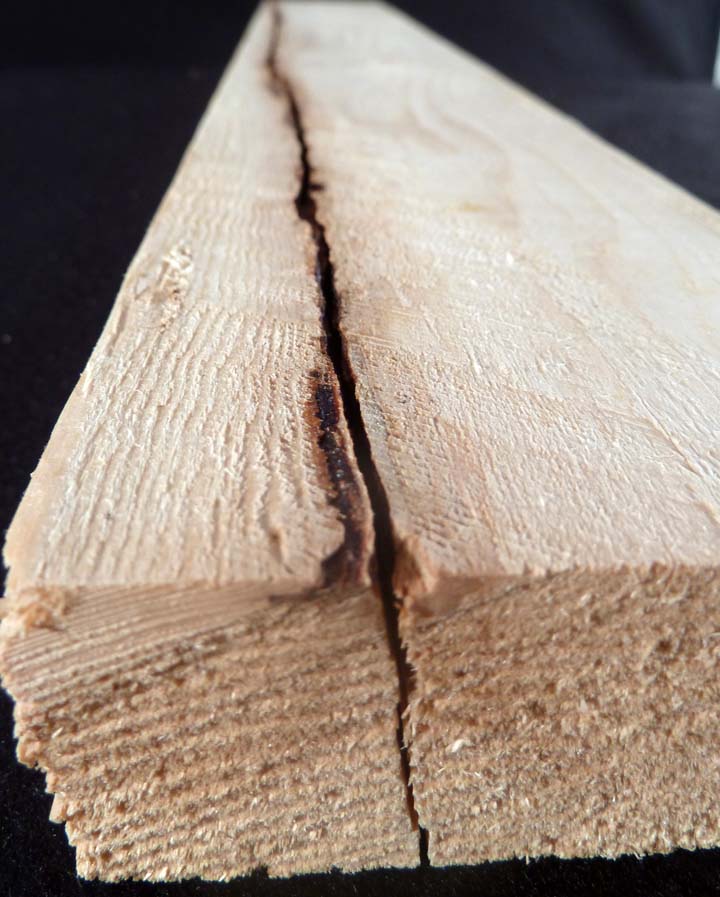

SPF 102: Splits

Splits are defined as a separation of the wood through the end of the piece extending to the opposite surface or to an adjoining surface due to the tearing apart of the wood cells.  [Standard Grading Rules for Northeastern Lumber para. 740.0]

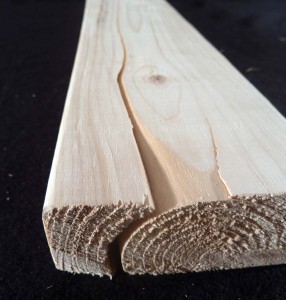

SPF 102: Shake

Shake is a lengthwise separation of the wood which occurs between or through the rings of an annual growth.  [Standard Grading Rules for Northeastern Lumber para. 740.0]

SPF 102: Compression Failure

A Compression Failure is a check that occurs within compression wood, typically caused during the drying process or ordinary seasoning.

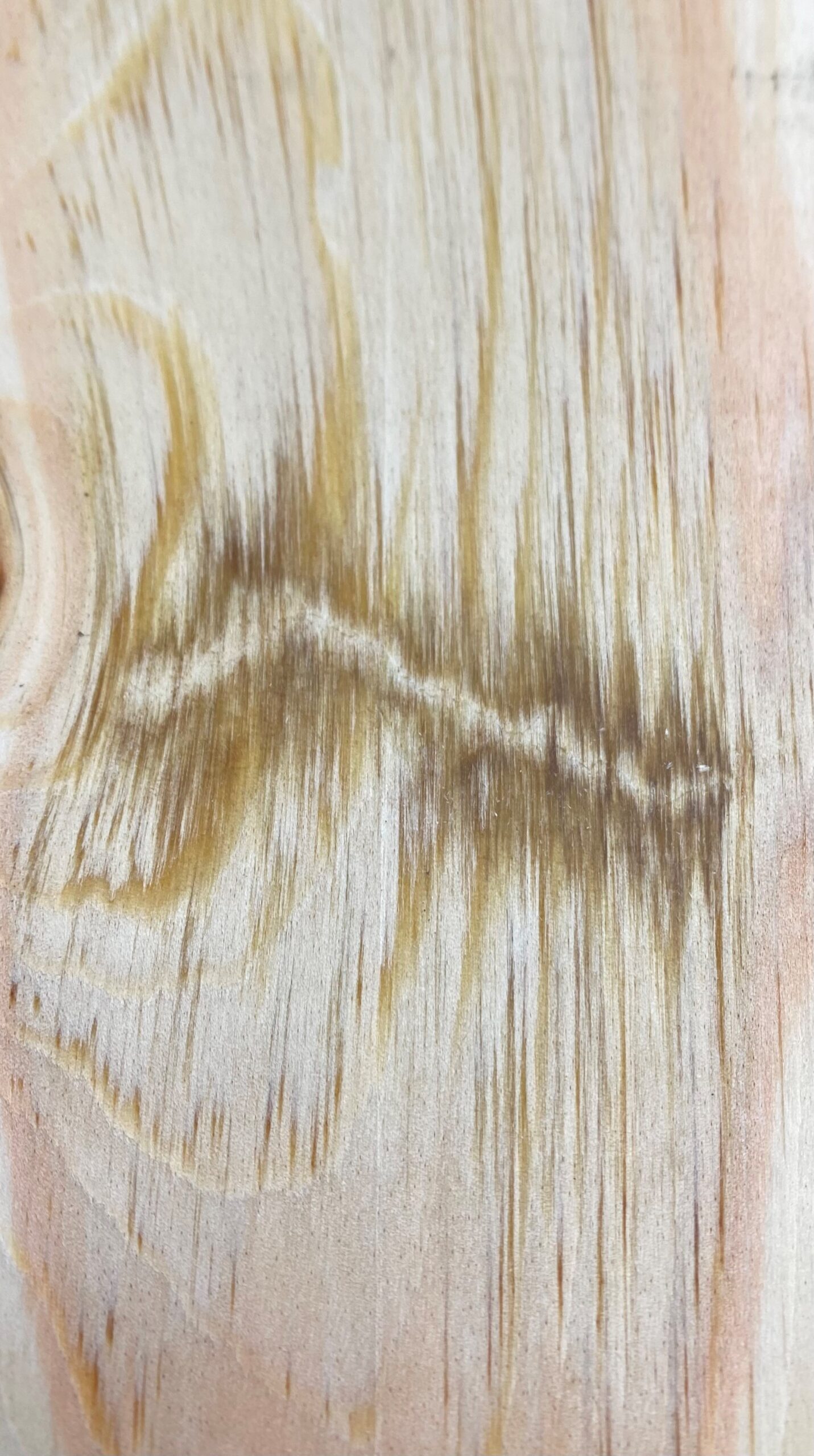

SPF 102: Timber Break

Timber Breaks are stress related fractures to the wood fiber which are believed to be a result of irrepressible forces applied to the living tree, such as sustained high winds, or the prevailing impacts, vibrations, and bending that can occur during felling.  The affected fibers of a Timber Break are not always perceptibly open or separated and it can be challenging to identify them in rough lumber; consequently, breaks are generally more visible in surfaced lumber.

You must pass the previous course to take the next quiz
